Introduction to pfSense
- We will configure the Captive Portal available in pfSense to integrate with RADIUSdesk and use RADIUS for authentication.
- To do this, we will start with the simplest possible configuration, which we will build on later.
Our setup
- As already mentioned, we have a very simple pfSense VM that acts as a router.
- There is a WAN port that is connected to the network with internet access.
- There is a LAN port where we want to activate the captive portal.
To access pfSense via the WAN port, you can temporarily disable the firewall with the following command
#Disable packet filter pfctl -d # Enable packet filter pfctl -e
- Here you can find instructions on how to permanently open HTTP access to the WAN port: https://www.vdtutorials.com/enabling-pfsense-2-5-2-administration-via-the-wan-interface/
- You will probably also need to add a similar rule for HTTPS.
System -> User Manager
- pfSense groups the configuration of LDAP and RADIUS servers under User Manager.

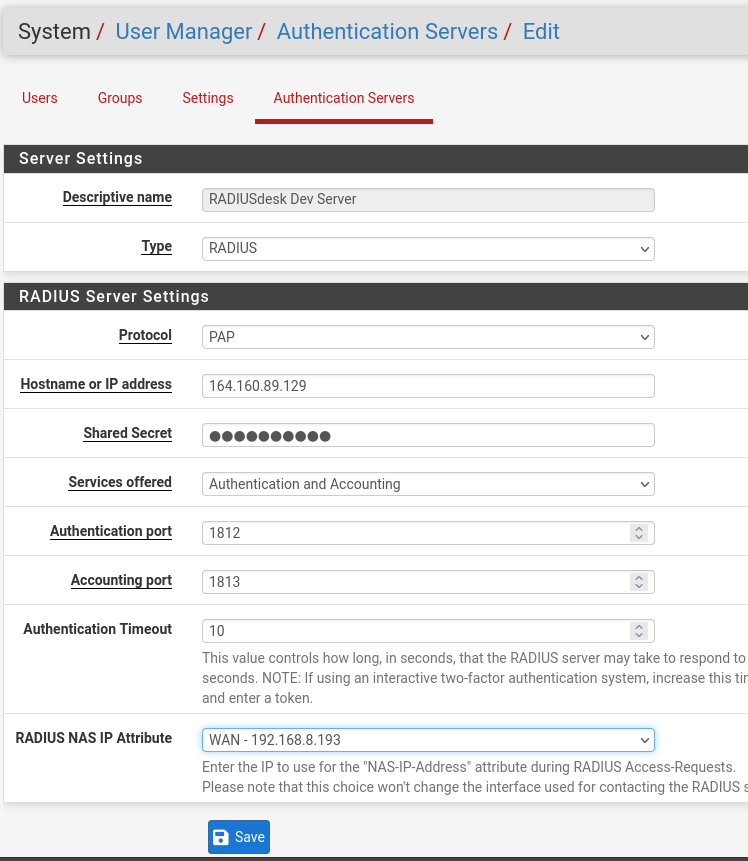

- You can specify multiple RADIUS servers under the Authentication Servers applet.
- We add our RADIUSdesk server here and select the PAP protocol.

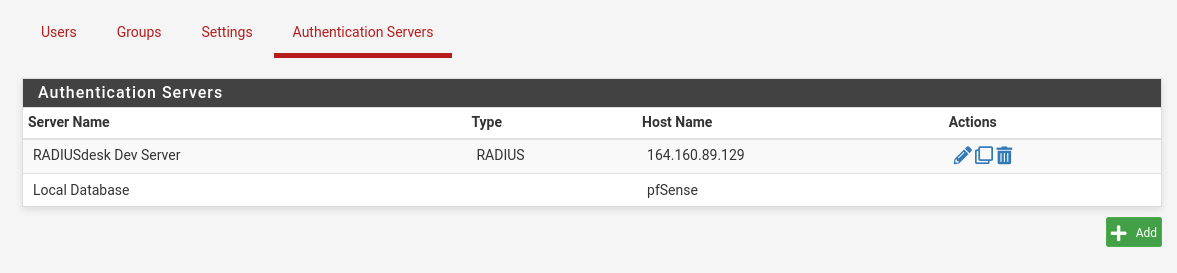

- Now everything is ready for the configuration of the captive portal.
Add Captive Portal

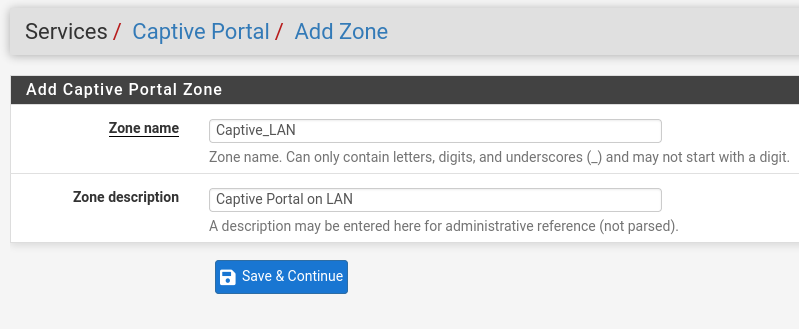

- Go to the Services → Captive Portal menu entry.
- Select Add to add a new zone.
