Attach A Device To Demo1 Mesh

  • We assume you flashed an access point with the MESHdesk and pointed it to the RADIUSdesk Full server.

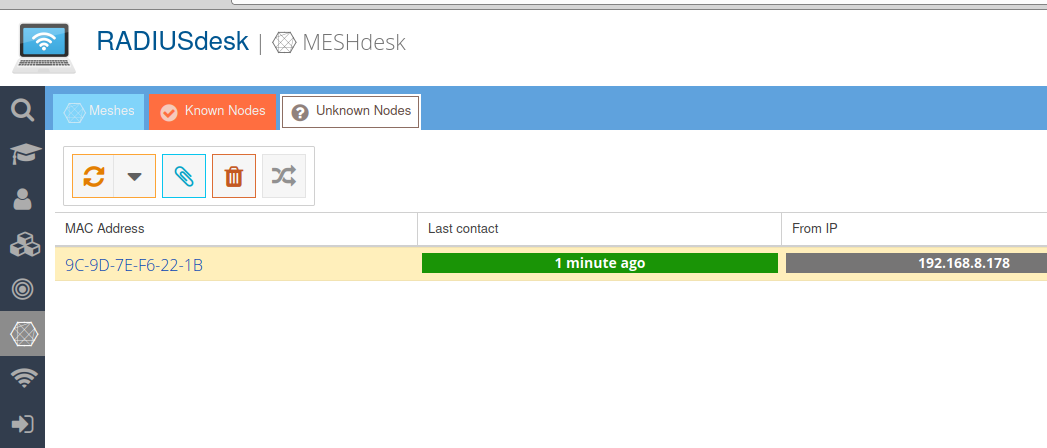

  • If you log into the RADIUSdesk server and navigate to MESHdeskUnknown Nodes it should be listed.

  • Select the device and click on the Attach button.

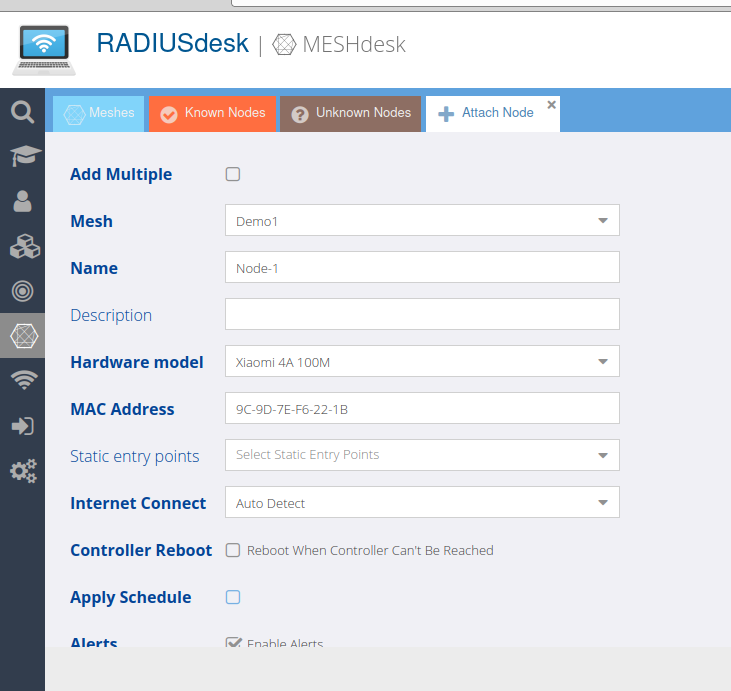

  • This will open a tab called Attach Node which you can then fill in.
  • Take care to select the correct hardware model that match your unit.

  • Once you are done click the Save button.

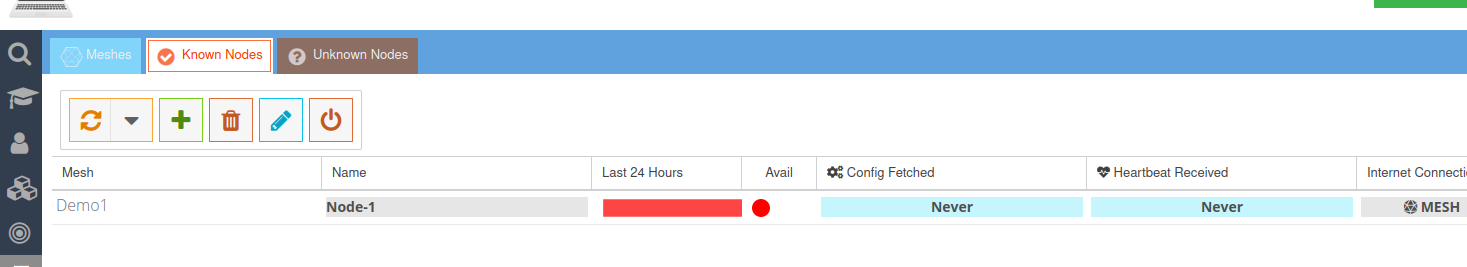

  • It should now appear under the Known Nodes.

  • Reboot the Access Point for it to fetch its settings.

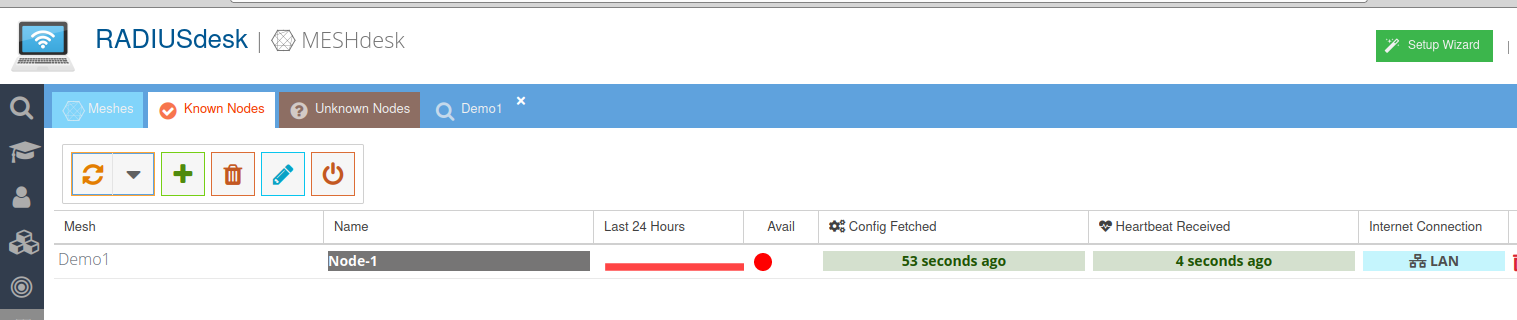

  • If all goes well it will fetch its settings and start sending heartbeats through every minute.

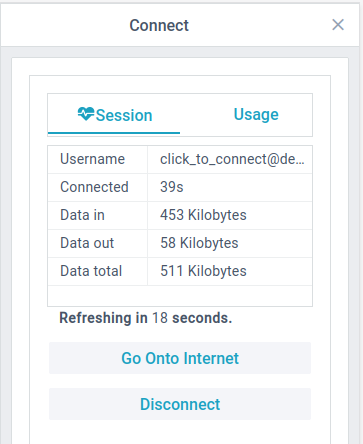

  • You can now test the captive portal's (Demo1 Guest) Click-To-Connect function.
