RADIUSdesk Mobile

Introduction

• As from July 2023 we are introducing RADIUSdesk Mobile as an alternative mobile first UI for RADIUSdesk.
• This means that in the future you will be able to do everything in RADIUSdesk from the privacy of your own phone.

• A simple task like issuing vouchers for Internet access or something more involved like deploying a mesh network on MESHdesk will all be possible to do from your phone.

Installing RADIUSdesk Mobile (Server)

• The latest install instructions already contain the inclusion of RADIUSdesk Mobile.
• If you have an existing deployment which is CakePHPv4 based you can add RADIUSdesk Mobile to your existing installation fairly easy.
• Make sure the rdcore repo is up to date and all the SQL patches are completed (Should there be any needed for your install)
• Do the following to obtain the RADIUSdesk Mobile code:

cd /var/www
sudo git clone https://github.com/RADIUSdesk/rd_mobile.git
cd /var/www/html/
sudo ln -s ../rd_mobile/build/production/RdMobile ./rd_mobile

• You can reach the RADIUSdesk Mobile by adding rd_mobile to the FQDN or IP Address of the RADIUSdesk server.
• e.g. https://cloud.radiusdesk.com/rd_mobile/

Installing RADIUSdesk Mobile On My Phone

• RADIUSdesk Mobile is a Progressive Web App (PWA) which means you can install it on your Android or Apple phone.
• For this to work, you need to access the rd_mobile app using https (Need a valid certificate)
• On the Chrome browser on my phone I have an install option listed.

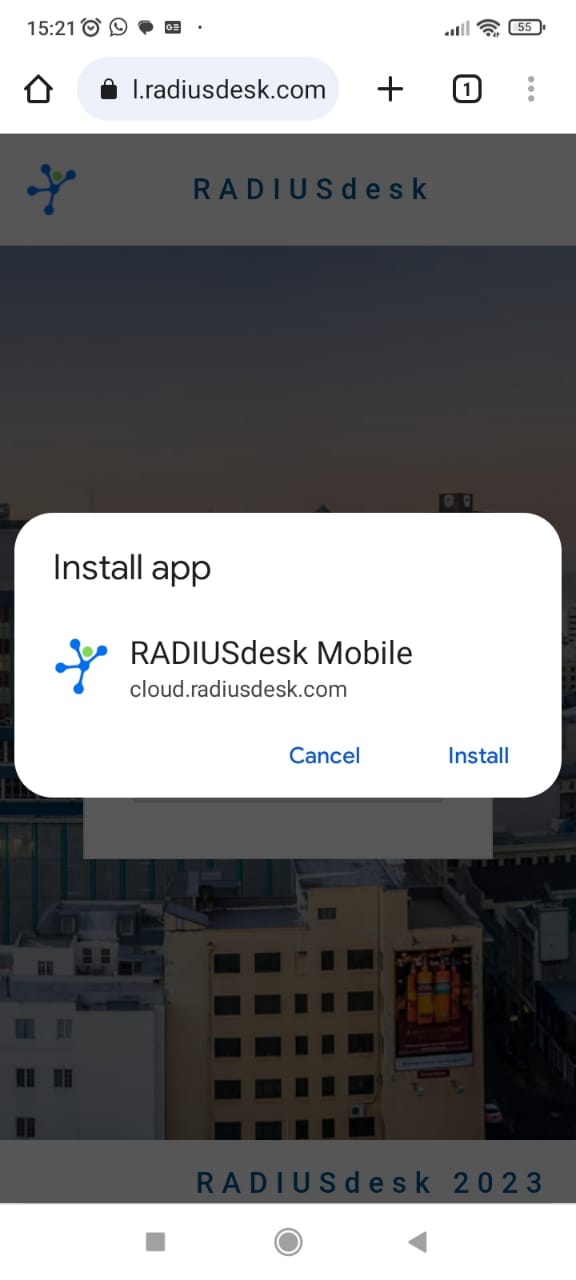

• Starting the install on my phone

Looking at the UI

• RADIUS Screen

• Filter results

• Graphs

• Activity

Our Videos

Setup Wizard

On-boarding / New Arrivals

Stats SSID <-> Device

Stats Node <-> Node

Stats Nodes
