OTP

Background

  • A One Time Password or OTP is a common method used for user verification.
  • A user will typically provide a mobile number or email address.
  • The system will then send a code to the mobile number using SMS or to the email address using an email.
  • This code will be used by the user to validate itself to the system.
  • As for February 2023 RADIUSdesk includes support for OTP verification for Captive Portal (Hotspot) users.
  • We support the following ways to send the OTP:
    • SMS
    • Email
  • We support OTP with:
    • Permanent User Registration
    • Click-To-Connet
  • The rest of this page will discuss the configuration and technical detail of the OTP functionality.

Enable System To Send OTPs

  • In order for RADIUSdesk to send an OTP you have to configure the system to be able to send the OTP using email or SMS.
  • RADIUSdesk allows for you to configure a system wide configuration but it also allows you to define per cloud settings which will take preference over the system wide settings.

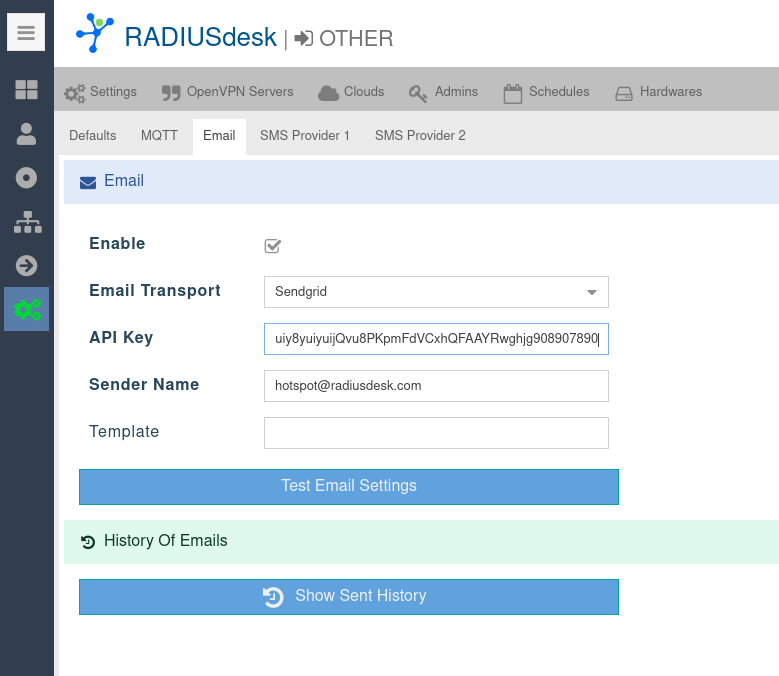

  • See the following screenshot for the email configuration:

  • We support Sendgrid and normal SMTP as a transport for the email.
  • After you specified the config press Save.
  • After you saved the configuration you can test it by clicking the Test Email Settings button.
  • You can also view the history of all the emails that the system sent out using this particular configuration by clicking the Show Sent History button.

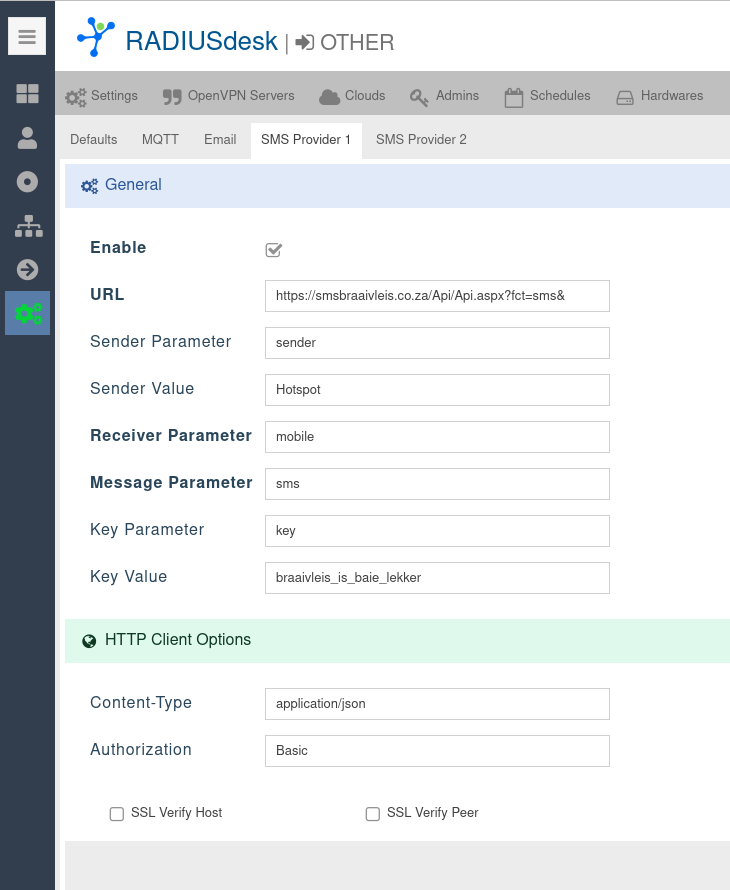

  • See the following screenshot for the SMS configuration.

  • Most SMS providers has an API that you use to send SMSs.
  • RADIUSdesk allows you to specify two SMS Providers. Both can be active however the system will only use the first active one it finds.
  • As with the email settings you are also able to test the SMS Settings after configuration.
  • You can also view the history of all the SMSs that the system sent out using that particular configuration by clicking the Show Sent History button.
  • These settings can also be specified per Cloud.
  • Go to OtherClouds.
  • Simply select the cloud for which you want to add more specific settings and edit it.
  • These settings will take preference.

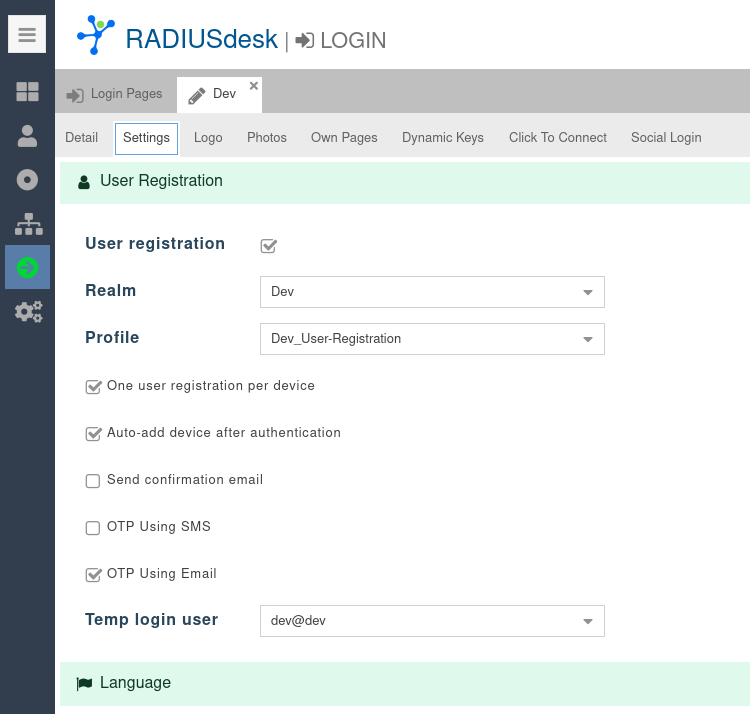

OTP For User Registration

  • The above screenshot should be mostly self explanatory.
  • There is however one important point that should be mentioned on using Email for OTP.
  • We sit with a bit of a chicken and egg situation since the person will need Internet access to get to their email to retrieve the OTP.
  • We will thus provide them temporary Internet access for this action.
  • This is what the Temp login user is for.
  • You are advised to create a dedicated user with a special profile for this purpose.
  • The profile should be
    • Time limited. e.g. Session-Timeout should be 360 seconds (5minutes)
    • The bandwidth should be limited.
  • This will allow for the user that registers to retrieve the OTP from their email but not much beyond that in terms of Internet connection.
  • The email with the OTP will also contain a link which the user can click to confirm the OTP to the system.
  • This makes is easy if the WebView with the Captive Portal Login Page closed while the user retrieved the OTP from their email.

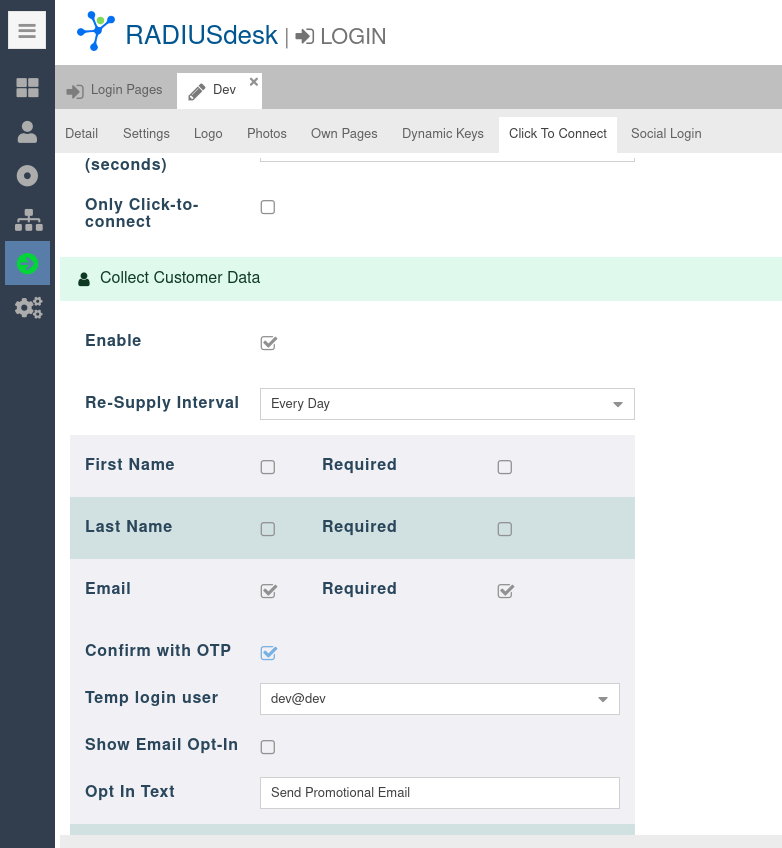

OTP For Click To Connect

  • With OTP for Click To Connect there are one of two options.
  • If you select the email option for the OTP, again you have to provide temporary Internet access to the user as with User Registration above.
  • If you select SMS option (the user's mobile number) you don't need to provide anything since the OTP will be delivered as an SMS.
  • We also again added a link in the email for the user to conveniently confirm the OTP by clicking on the link.

Some Technical Items

Expiry of the OTP

  • The current expiry time for an OTP is two minutes.
  • This can be adjusted by editing /var/www/html/cake4/rd_cake/src/Controller/RegisterUsersController.php and /var/www/html/cake4/rd_cake/src/Controller/DataCollectortsController.php files.
  • Look for this line and adjust acordingly.
protected $valid_minutes = 2; //The time that an OTP will be valid (in minutes)
  • For the verification through the Email link we expire the OTP after $valid_minutes times two. (4minutes)

Disconnecting Temp Connection

  • The URL link in the email will cause a redirect to a special CoovaChilli URL that will log the user out (http://1.0.0.0).
  • For this to happen the user should be connected to the Captive Portal so that this URL can log them out.
if($otp == $q_r->value){
    $success = true;
    $this->{'PermanentUserOtps'}->patchEntity($q_r, ['status' => 'otp_confirmed']);
    $this->{'PermanentUserOtps'}->save($q_r);
    $user_id = $q_r->permanent_user_id;
    $q_pu = $this->{'PermanentUsers'}->find()->where(['PermanentUsers.id' =>$user_id])->first();
        if($q_pu){
		$this->{'PermanentUsers'}->patchEntity($q_pu, ['active' => 1]);
		$this->{'PermanentUsers'}->save($q_pu);
	}
	$this->response = $this->response->withHeader('Location', "http://1.0.0.0");
        return $this->response;

}else{

We are still looking for a similar way to disconnect users on a Mikrotik based Hotspot.
